Features

• Made in the USA

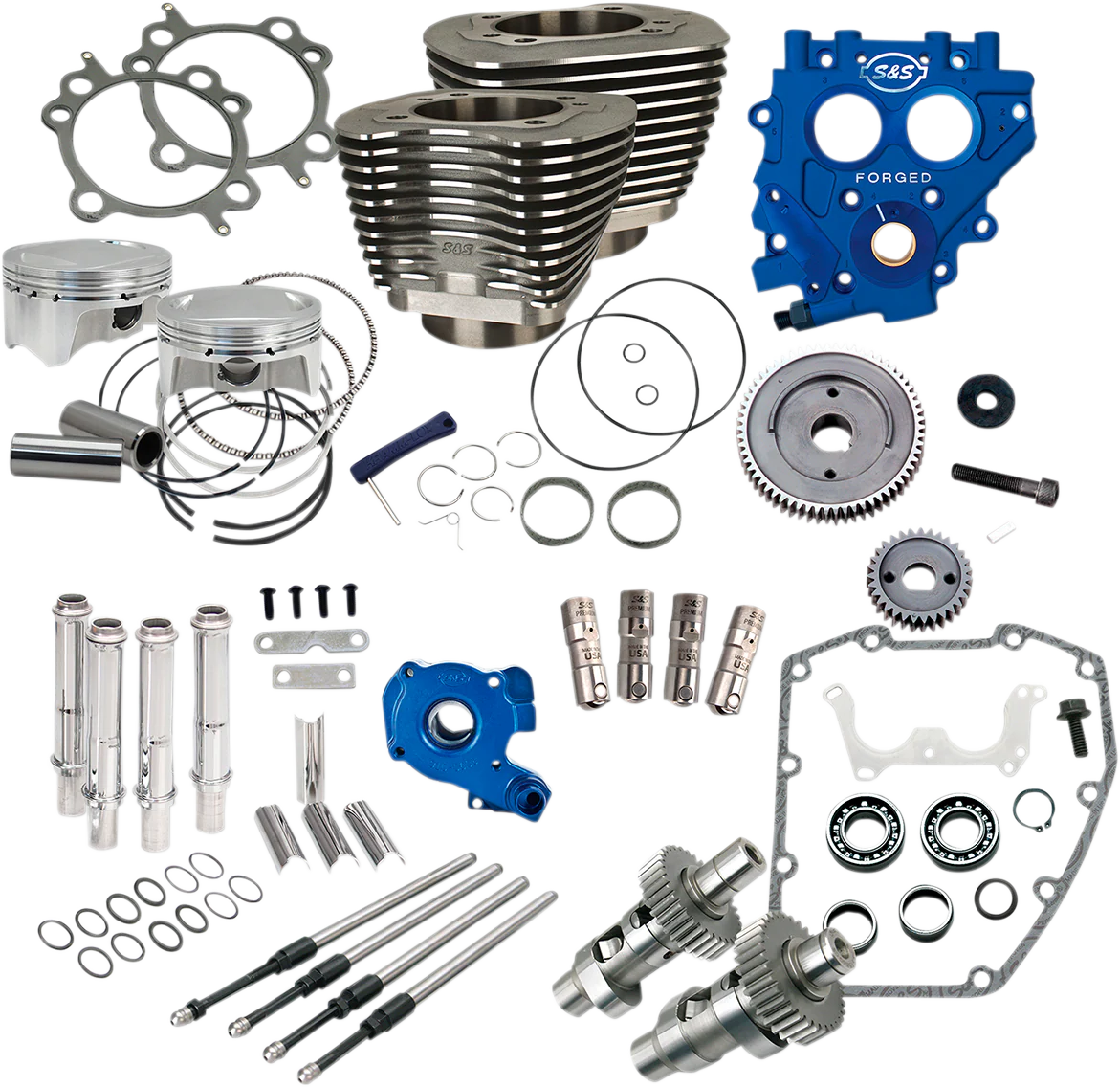

• S&S 4.000" Big-Bore Cylinders, Piston Kits, S&S 585 Easy Start® Cams, S&S Quickee Pushrods, TC3 Cam Support Plate, TC3 Oil Pump, and Precision Hydraulic Tappets are included in this kit

S&S Cylinder

• 2x S&S 4.000" bore cylinders
• Low friction ductile cast iron liner
• Bolt in
• No maching, balancing, or splitting the crankcase
• Can be used with stock heads
• Increase displacement from 88 ci to 100 ci

Piston Kit

• 2x 4.000" pistons for front and rear
• 2x 0.927" piston pins
• 4x Piston pin clips with installation tool
• 2x Ring packs which includes the top, second, oil rail and expander rings
• Provides 10.5:1 compression ratio

S&S 585 Easy Start® Cam Specifications

• Intake: Open 20° / Close 45° / Duration at 0.053" 245° / Valve Lift 0.585"
• Exhaust: Open 60° / Close 20° / Duration at 0.053" 260° / Valve Lift 0.585"

S&S Quickee Pushrods

• Adjustable with chrome tubes

TC3 Cam Support Plate and TC3 Oil Pump

• Machined from aluminum forgings
• Ensures consistent oil pressure and engine longevity

Precision Hydraulic Tappets

• Close tolerances for low leak down rates
• Reduced valve train noise from start to shut down

Notes

• Not for '06 Dyna.
• Not compatible with S&S 79 cc Super Stock® heads.
• Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.
• '99-'04 Twin Cams will require the additional purchase of valve spring kit (sold separately).
• Pinion shaft runout must be less than .003" to use gear drive cams.

CALIFORNIA WARNING: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.

Specs

Product Name	Power Package
Type	Engine
Style	585GE
Model	Performance Kit
Color/Finish	Wrinkle Black
Features	Chrome Pushrod Tubes
Displacement	100"
Bore Size	4.000"
Compression Ratio	10.5:1
Cam Drive Type	Gear
Units	Kit
Riding Style	Street
