Features

• S&S cams are tested on the dyno, street and racetrack before being offered to the public
• With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
• For 84" to 93" motors, not more than 9:1
• Best response occurs in the mid range from 2500 to 5000 rpm
• Recommend high-performance hydraulic or solid lifters
• Made in the USA

Notes

• Spring spacing is required.
• Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.

CALIFORNIA WARNING: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.

Specs

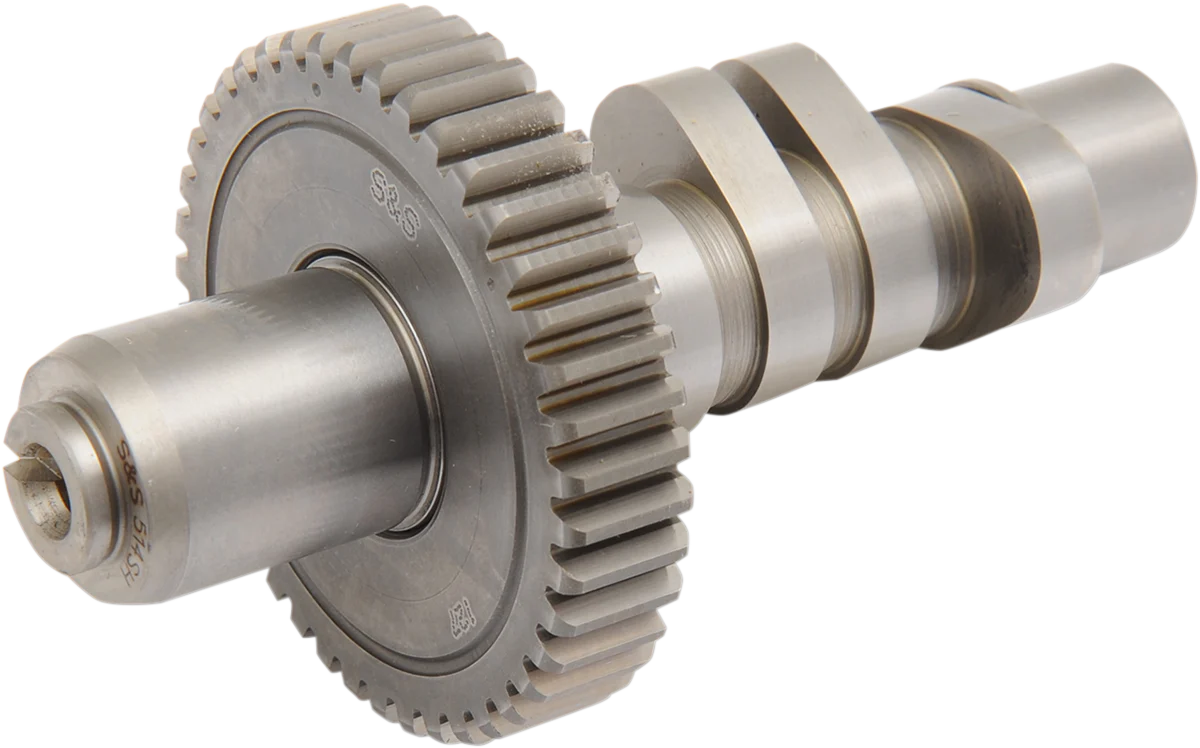

Product Name	Cam
Application	Intake / Exhaust
Grind	514 Series
Intake Lift	0.540" Panhead, 0.514" Shovelhead
Intake Open	23°
Intake Close	43°
Intake Duration	246°
Intake Lift at TDC	0.177" Panhead, 0.169" Shovelhead
Exhaust Lift	0.540" Panhead, 0.514" Shovelhead
Exhaust Open	43°
Exhaust Close	23°
Exhaust Duration	246°
Exhaust Lift at TDC	0.177" Panhead, 0.169" Shovelhead
Units	Each
Riding Style	Street
