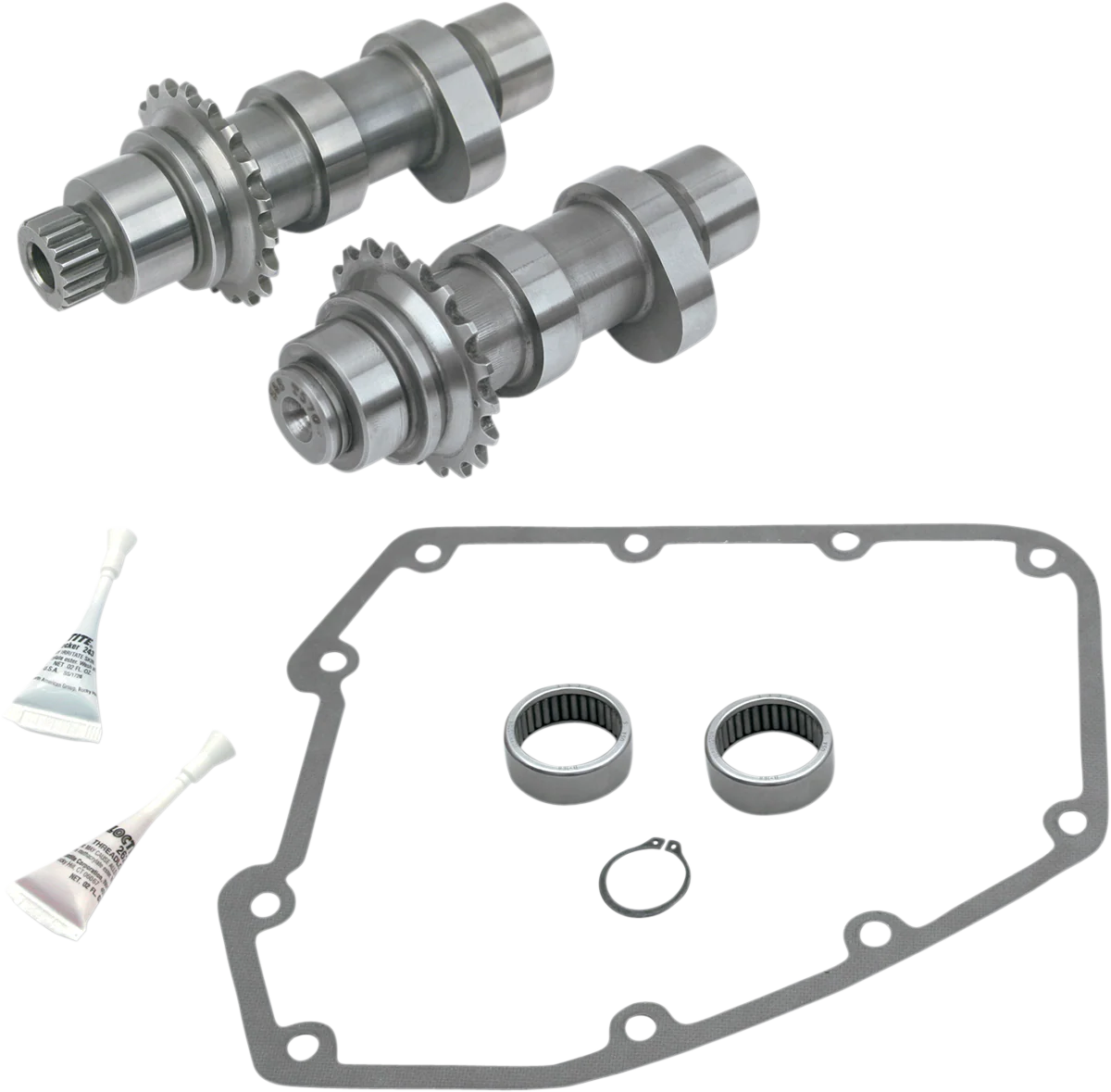

S&S CYCLE Camshaft Kit - 583C - Chain Drive - '07-'17 Twin Cam and '06 Dyna
Features
- Great overall cam for Softail and Dyna
- Provides strong low-end torque and horsepower
- Strongest from 1500-5000 rpm
- Made in the USA
Notes
- For use with models with hydraulic tensioner chain drive system and require high lift valve springs.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
- Not recommended for engines having compression ratios greater the 10.1:1.
DISCLAIMER: Not legal for sale or use in California on any pollution controlled motor vehicles.
Specs
| Product Name | Camshaft Kit |
| Type | Chain |
| Application | Intake / Exhaust |
| Grind | 583 Series |
| Intake Lift | 0.583" |
| Intake Open | 5° |
| Intake Close | 18° |
| Intake Duration | 203° |
| Intake Lift at TDC | 0.113" |
| Intake Lobe Centerline | 96.5° |
| Exhaust Lift | 0.583" |
| Exhaust Open | 58° |
| Exhaust Close | 24° |
| Exhaust Duration | 262° |
| Exhaust Lift at TDC | 0.206" |
| Exhaust Lobe Centerline | 107° |
| Units | Kit |
| Riding Style | Street |
