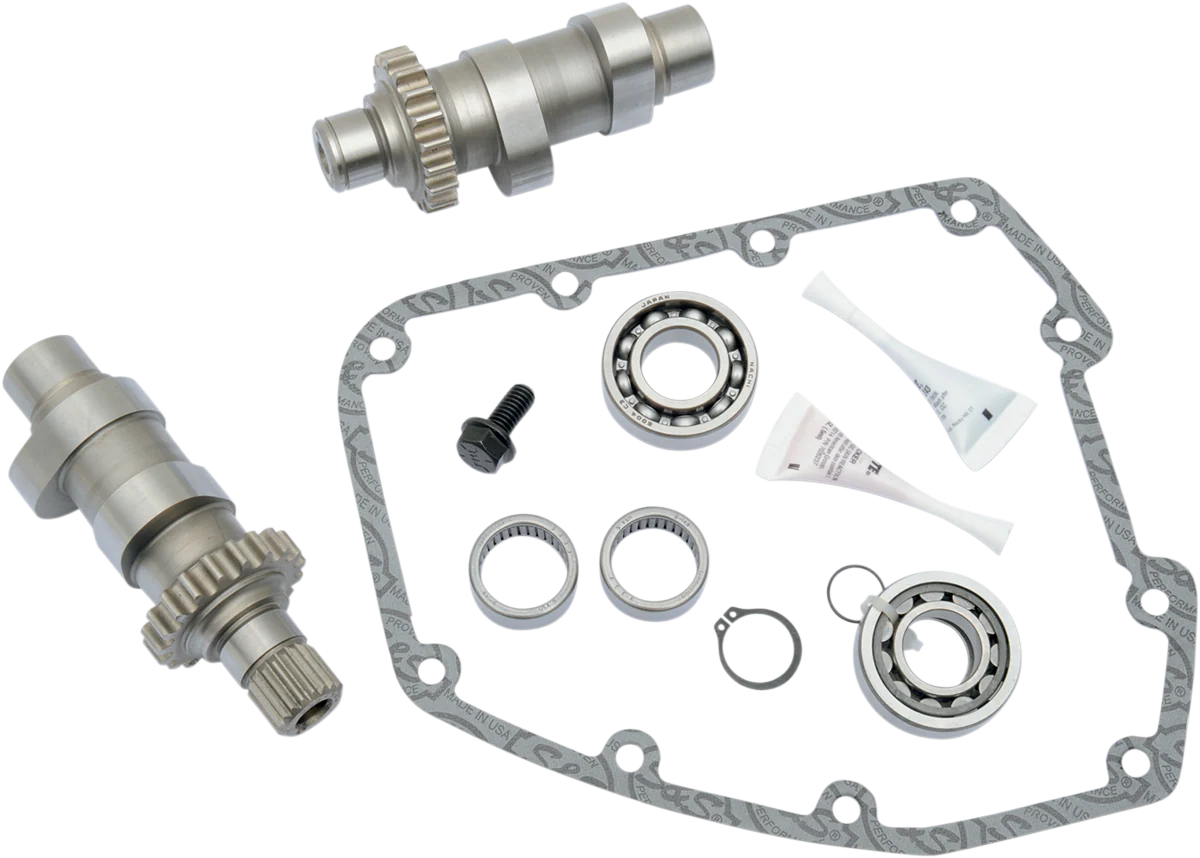

S&S CYCLE Camshaft Kit - 625C - Chain Drive - Twin Cam '99-'06
Features
- For 95" or larger engines with compression ratios between 10.0 to 10.75:1
- High-lift springs and adjustable pushrods required
- Strongest from 3000-6000 rpm
- Made in the USA
Notes
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
- Cams for '00-'06 Twin Cam are for use with stock splined drive gears; for installation on '99 Twin Cam motors you must purchase splined outer drive sprocket; S&S recommends Andrews 4340 steel driver sprocket.
- Some models will require high performance valve springs.
CALIFORNIA WARNING: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.
Specs
| Product Name | Camshaft Kit |
| Type | Chain |
| Application | Intake / Exhaust |
| Color/Finish | Raw |
| Grind | 625 Series |
| Intake Lift | 0.625" |
| Intake Open | 20° |
| Intake Close | 55° |
| Intake Duration | 255° |
| Intake Lift at TDC | 0.189" |
| Intake Lobe Centerline | 107.5° |
| Exhaust Lift | 0.625" |
| Exhaust Open | 60° |
| Exhaust Close | 20° |
| Exhaust Duration | 260° |
| Exhaust Lift at TDC | 0.184" |
| Exhaust Lobe Centerline | 110° |
| Units | Kit |
| Riding Style | Street |
