S&S CYCLE Camshaft - Easy Start - 625 Chain Drive- Twin Cam '99-'06 (except '06 Dyna)
Features
- Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- Designed for 95" or larger engines with compression ratios between 10.0:1 and 10.75:1 with rpm 3000 rpm - 6000 rpm

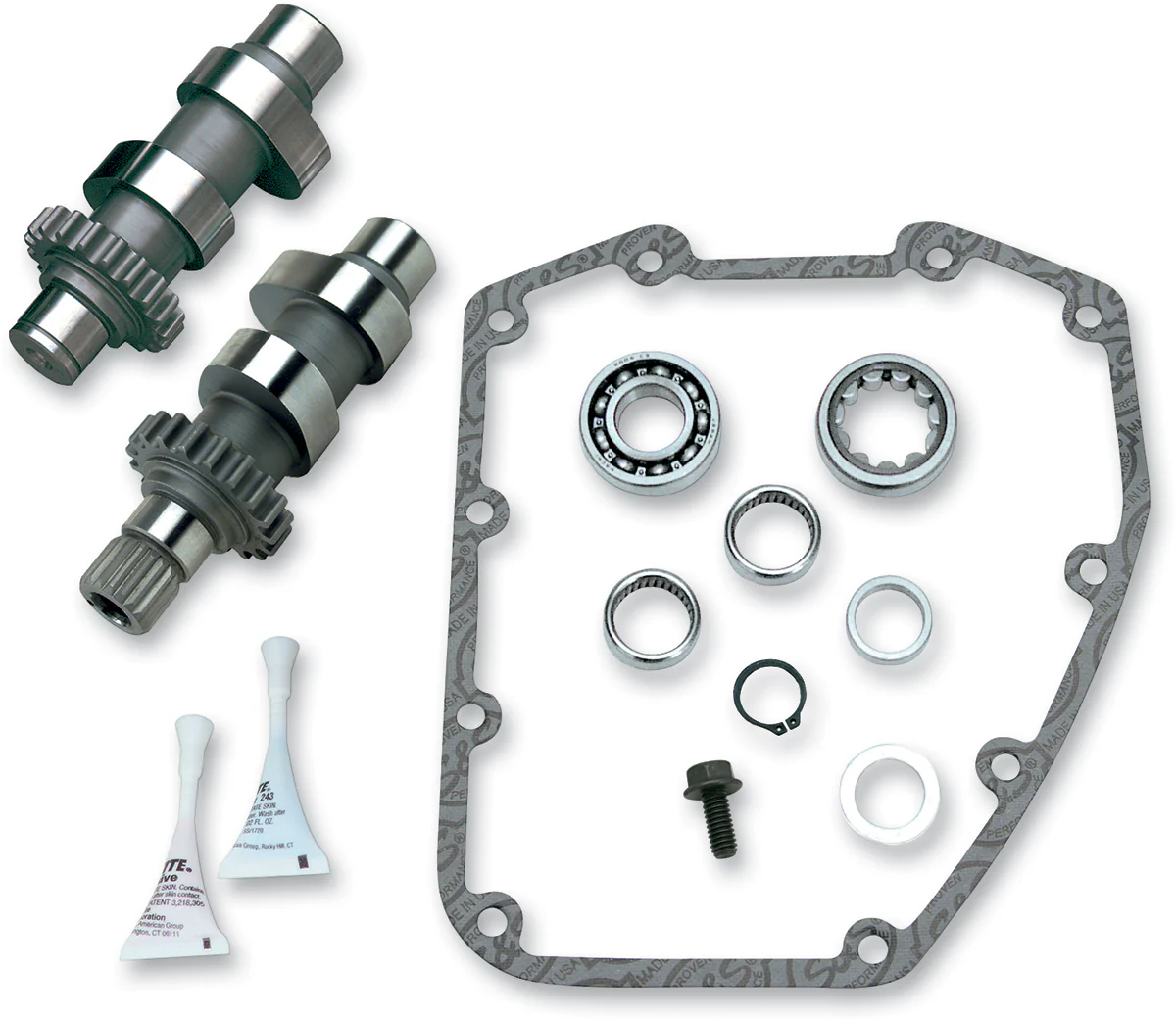

- Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
- Made in the USA
Notes
- High-lift springs and adjustable pushrods are required.
- Not for models with OEM compression releases.
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
DISCLAIMER: Not legal for sale or use in California on any pollution controlled motor vehicles.
Specs
| Product Name | Camshaft Kit |
| Type | Chain |
| Application | Intake / Exhaust |
| Model | Easy Start |
| Grind | 625 Series |
| Intake Lift | 0.625" |
| Intake Open | 20° |
| Intake Close | 55° |
| Intake Duration | 255° |
| Intake Lift at TDC | 0.189" |
| Intake Lobe Centerline | 107.5° |
| Exhaust Lift | 0.625" |
| Exhaust Open | 60° |
| Exhaust Close | 20° |
| Exhaust Duration | 260° |
| Exhaust Lift at TDC | 0.184" |
| Exhaust Lobe Centerline | 110° |
| Units | Kit |
| Riding Style | Street |
